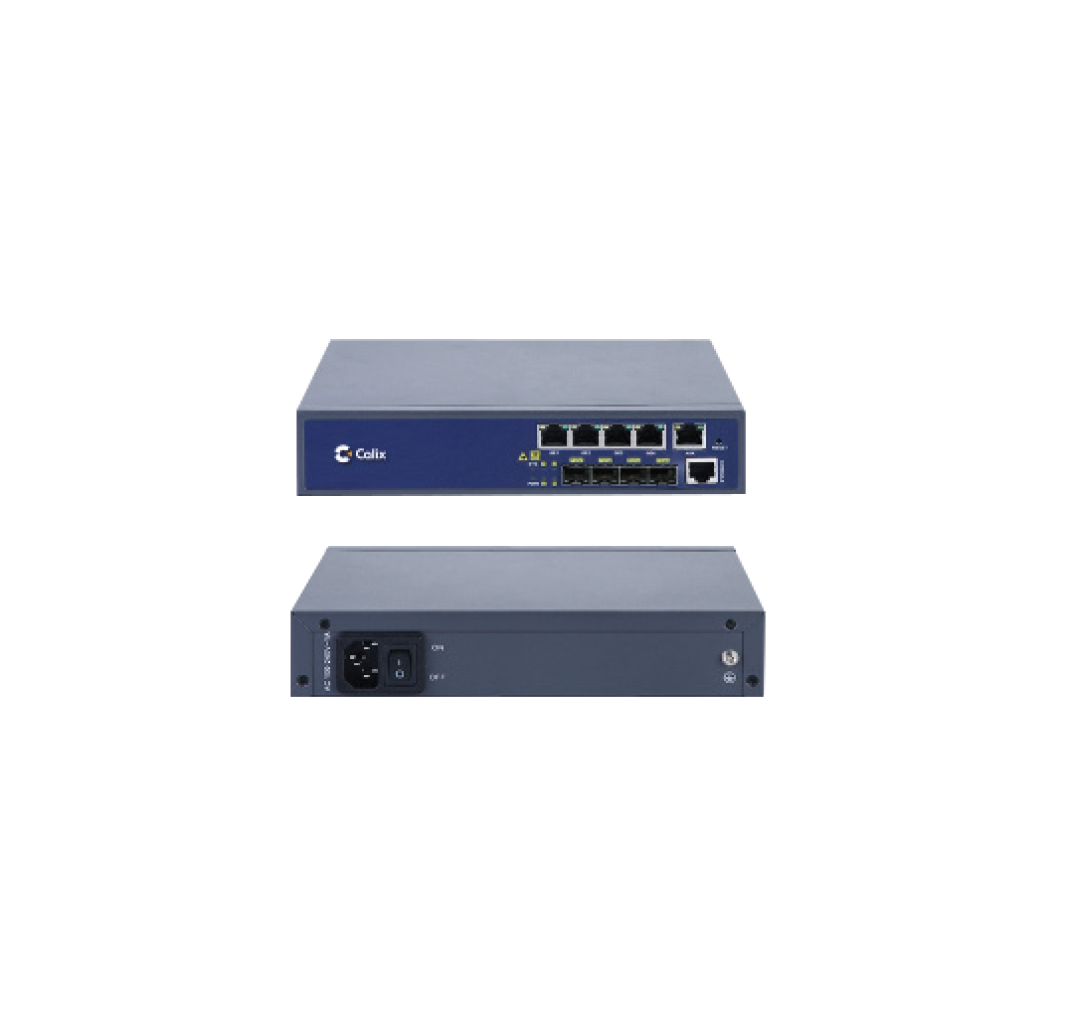

CX600D-MINI is a compact EPON OLT providing 4 ports, and it enables the ISP’s to provide FTTH and triple play services also in low density areas, with a minimum of investment. The model provides 4 x GE copper independent interface for uplink, and 4 x EPON OLT ports for downstream. Up to 64 termination points can be connected to each EPON port via the splitter, and in case of very high bandwidth requirements, single users can be connected without a splitter.
– 4 x10/100/1000M auto-negotiation Uplink ports
– 4 x 1000BASE SFP downlink Ports
– 1.25 Gbps EPON Pots speed
– 1*10/100BASE-T out-band port,
– Transmitter wavelength – 1490 nm
– Receiver wavelength – 1310 nm
– 1:64 Splitting ratio
– supports upto 256 ONU’s
– Transmission Distance – 20 Km
