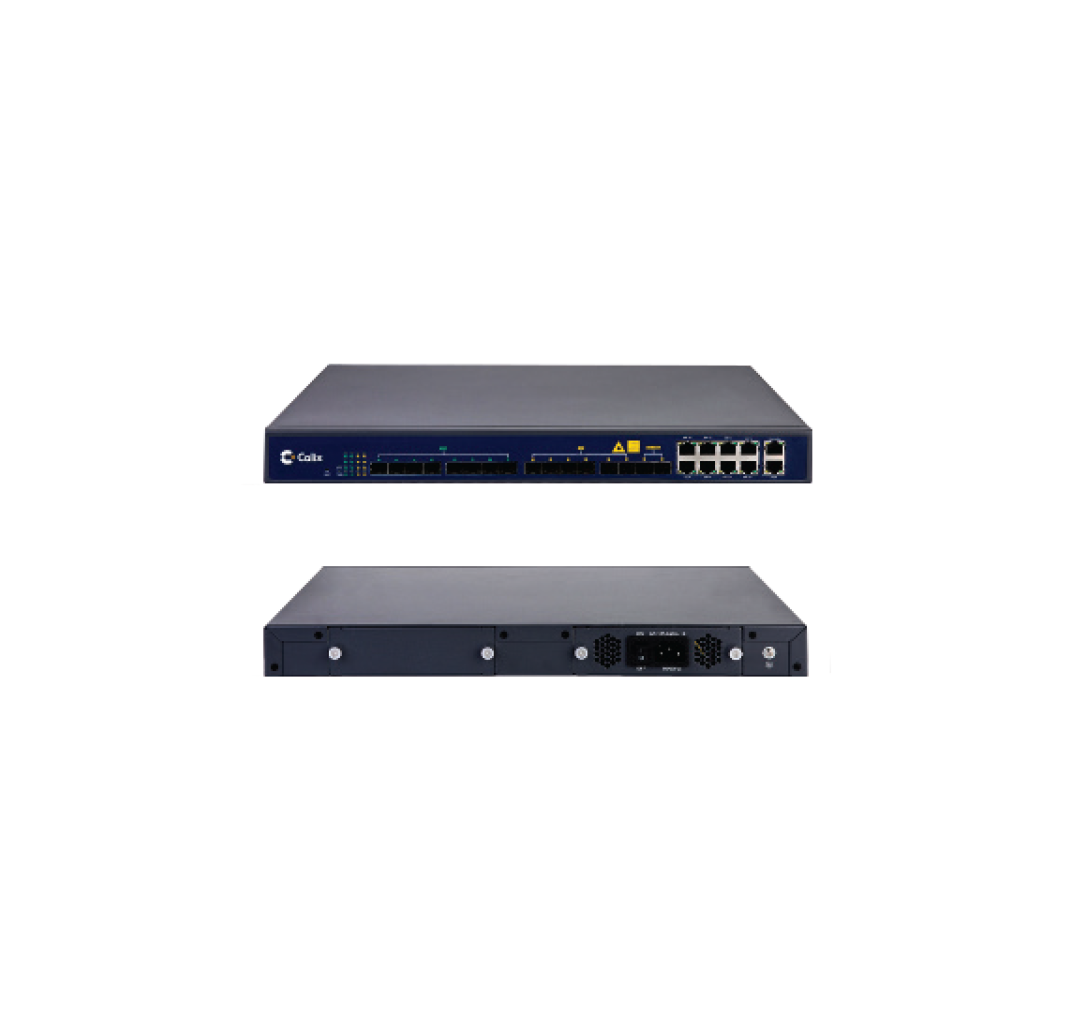

CX600D16 is a compact EPON OLT with 16 ports, and provides comprehensive Quality of Service functions and supports traffic management, priority control, and bandwidth control functions meeting various requirements of commercial customers. The model provides 4 x GE copper and 8 SFP slot independent uplink, and 16 x EPON OLT ports for downstream. Up to 64 termination points can be connected to each EPON port via the splitter, and in case of very high bandwidth requirements, single users can be connected without a splitter.
– 4 x 10/100/1000M auto-negotiation copper uplink ports
– 8 x SFP/ 4*SFP and 4*SFP+ uplunk ports
– 16 x 1000BASE SFP downlink Ports
– 1.25 Gbps EPON Pots speed
– 1 x 10/100BASE-T out-band port
– Transmitter wavelength – 1490 nm
– Receiver wavelength – 1310 nm
– 1:64 Splitting ratio
– supports upto 1024 ONU’s
– Transmission Distance – 20 Km
